Conventional Eddy Current:

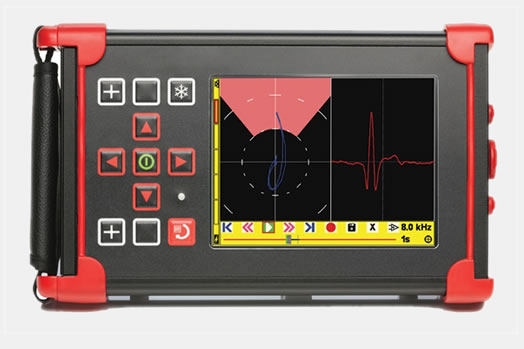

AeroCheck Family - eddy current flaw detector:

The AeroCheck+ is the follow on Eddy Current (EC) Flaw Detector from the AeroCheck. The AeroCheck+ offers the same features as the original AeroCheck, including Rotary Capabilities as standard, but in addition offers Dual Frequency with Auto-mix and Conductivity Measurement as well as an outstanding Frequency Range from 20Hz to 12.8MHz.
Auto-mix simplifies the sometimes complex procedure of mixing two different frequency signals and can be achieved on the AeroCheck+ through a series of easy steps. Setting the Auto-mix itself is as simple as pressing one key.
Designed and manufactured in the UK, the AeroCheck+ comes with the ETher NDE promise of outstanding customer service and technology that is both reliable and advanced.

 The  New AeroCheck 2 offers all the advanced features of the AeroCheck Plus (including, Loop, Guides and Trace) but without Dual Frequency and Conducivity Capability. A summary of the key features and comparison with older products is given here.

The AeroCheck Plus and 2 can be used with all reflection, bridge and absolute probes from all manufacturers and uses industry standard 12-Way Lemo and Co-axial Lemo 00 connectors, reducing the need to use
adapters. Brochures:



AeroCheck Family - eddy current flaw detectors

More information:

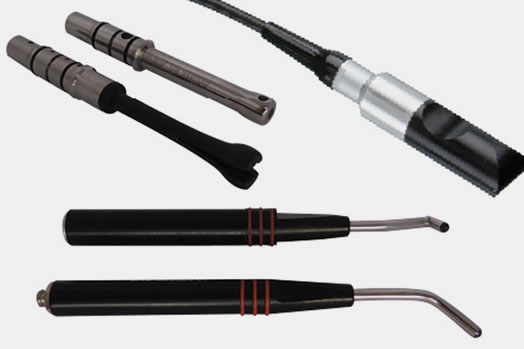

Eddy Current Probes and accessories.



Brochure:
Eddy Current Probes and accessories
